ControlLogix Systems Training with Studio 5000

This full course develops the practical ControlLogix skills maintenance technicians need to navigate Studio 5000, connect to controllers, interpret tags and ladder logic, and troubleshoot hardware and I/O issues. It is designed for industrial teams supporting uptime, safe work practices, and consistent troubleshooting methods.

Course modules

Module 1: Introduction to the ControlLogix—General Structure, Number Systems, and Basics of Boolean Logic
Module 2: ControlLogix Hardware Composition, I/O Structure and Architecture—Introduction to Tags
Module 3: Navigating the Studio 5000 Software and Creating, Opening and Understanding Projects

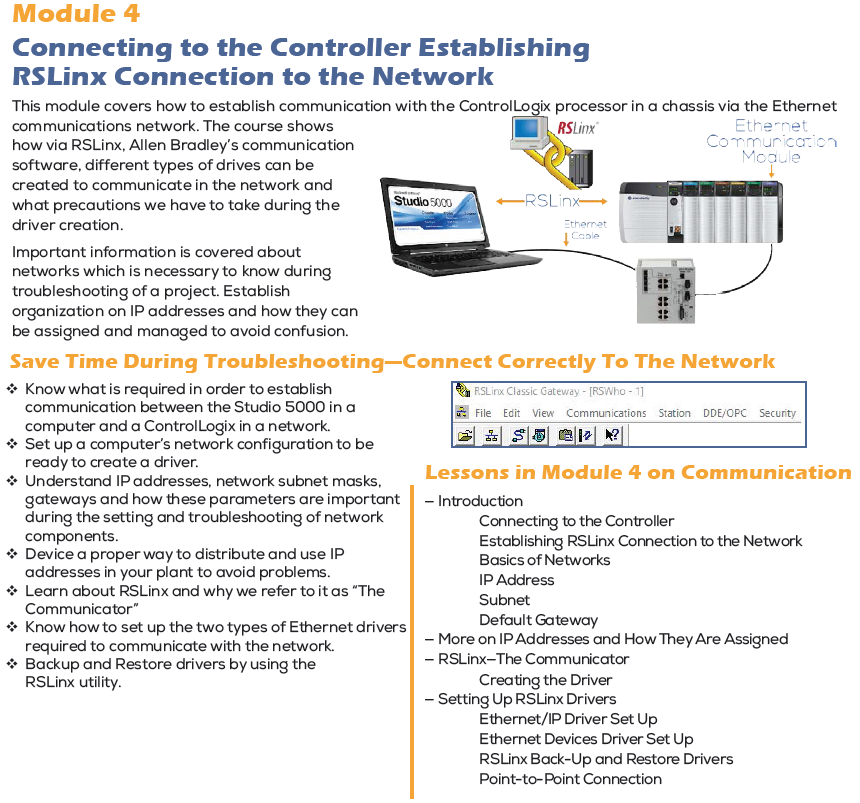

Module 4: Connecting to the Controller—Establishing RSLinx Connection to the Network
Module 5: ControlLogix Project Organization and Frequently Used Tag Structures
Module 6: Troubleshooting Ladder Diagram Logic in the ControlLogix System
Module 7: Creating and Editing Tags and Code—Documenting Troubleshooting Changes
Module 8: Troubleshooting Using the Studio 5000 Software—Using I/O Forcing and Toggling Functions
Module 9: Troubleshooting ControlLogix Hardware—Discrete and Analog I/O
Module 10: Troubleshooting Remote I/O, Controller and Power Supply—Using the Trend and Compare Tools to Troubleshoot

Training features

Interactive lessons and practical assessments
Self-paced delivery for maintenance teams
Certificate of completion
Reference materials for continued technical review

ControlLogix Systems with Studio 5000 Training Program Handbook Collection

ControlLogix Handbook Collection
